LaBomba Pro
Built to be the dirt jumper you’re proud to shred straight out of the box. The LaBomba’s lightweight alloy frame features ultra-responsive geometry and integrated chain tensioners to keep things dialed. With a barspin or tailwhip ready hydraulic brake and a 100mm Manitou Circus Expert air fork, the LaBomba Pro is ready to for anything you can throw at it. Take it to the jump park, pump track or skatepark - all that's left is to choose your session.
- Manitou Circus Expert Fork, 32mm 7050 Alloy Stanchions, 100mm Travel, 110x20mm Dropout
- GT Power Series 22mm Cr-Mo 3pc. Cranks/ Kenda 3-Sixty Tires
- Alloy Sealed 20mm Disc Front Hub/ Alloy Sealed 13T Cassette Hub
Extra long brake hose
Integrated Chain Tensioners in Dropouts
26" Wheels

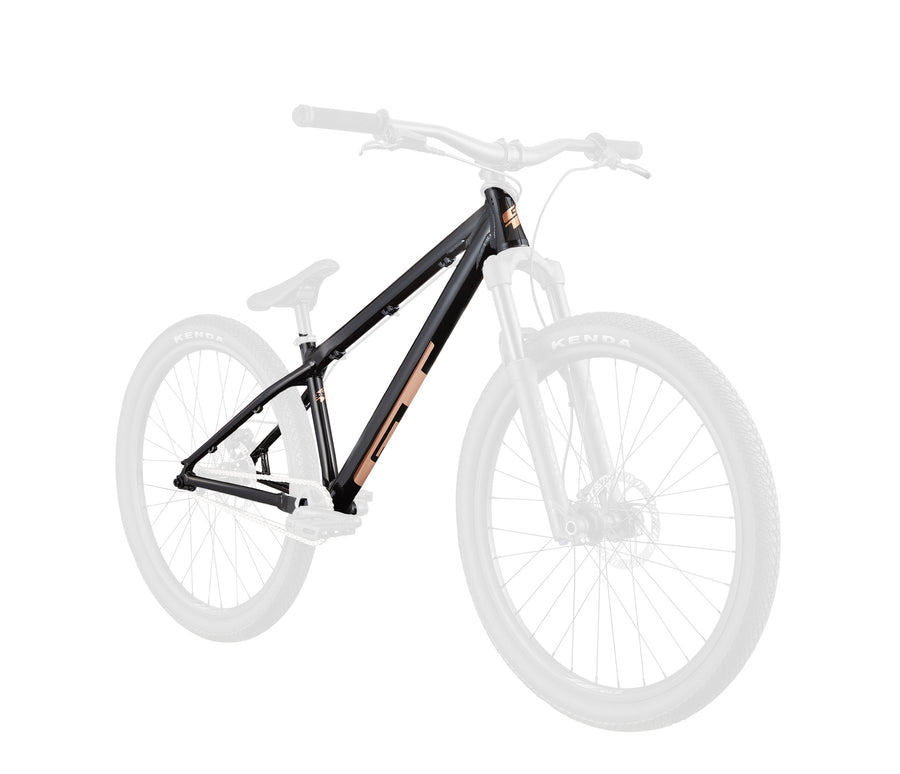

Frame
frame
6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8"-1.5" Taper H/T, 3/8" Horizontal Adjustable Dropout w/ Integrated Chain Tensioners
sizes available
MD, LG
fork
Manitou Circus Expert, Coil w/ Rebound Adjust, 20mm Thru Axle, 1-1/8"-1.5" Taper AL Steerer, 100mm Travel, Pre Load Adjust, Black Stanchions
wheel size
26
Wheels
rims
Alloy Double Wall, 32h
front hub
Sealed Alloy Disc, 20mm
rear hub
Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8" x 17mm Female Bolt
front tire
Kenda 3-Sixty 2.35"
rear tire
Kenda 3-Sixty 2.35"
spokes
Stainless Steel, 14g
Drivetrain
rear cogs
13T Cog
chain
KMC HL1 Wide
crank
GT Power Series 3pc Chromoly 170mm, 22mm x 48T Spindle, GT NBS 28T Alloy Chainwheel
bottom bracket
BSA Sealed
pedals
GT Logo PC Platform
Cockpit
handlebar
GT Alloy Riser Bar, 30mm Rise, 780mm Wide, 5° Up, 8° Back
stem
GT 3D Forged Alloy Stem 35mm, 31.8mm Clamp
grips
GT Super Soft Flanged
headset
1-1/8-1.5" Taper Sealed Integrated, (45)
seatpost
Alloy Pivotal 27.2 x 200mm
saddle
GT Pivotal Slim Padded
Brakes
brakes
Hydro Disc, 160mm Rotor
brake levers
2 Finger Hydro
Please note that, based on component availability and other factors, specifications are subject to change without notice.
Fit Guide
- XS
-
4'8" - 5'1"
- S
-
5'0" - 5'6"
- M
-
5'5" - 5'11"
- L
-
5'10" - 6'2"
- XL
-
6'1" - 6'6"
Geometry
Sizes (in) | MD | LG |
---|---|---|
Seat tube length | 334 | 334 |
Seat tube angle effective | 75.6 ° | 75.6 ° |
Top tube horizontal | 570 | 590 |
Top tube actual | 564 | 590 |
Head tube angle | 68.5 ° | 68.5 ° |
Standover | 691 | 691 |
Head tube length | 110 | 110 |
Wheelbase | 1057 | 1087 |
Front center | 673 | 702 |
Chainstay length | 378 | 378 |
Bottom bracket drop | 25 | 25 |
Bottom bracket height | 334 | 334 |
Dropouts | 10mm | 10mm |
Fork rake | 41 | 41 |
Trail | 90 | 90 |
Stack | 588 | 588 |
Reach | 406 | 436 |
Travel front | 100 | 100 |
